Memory management

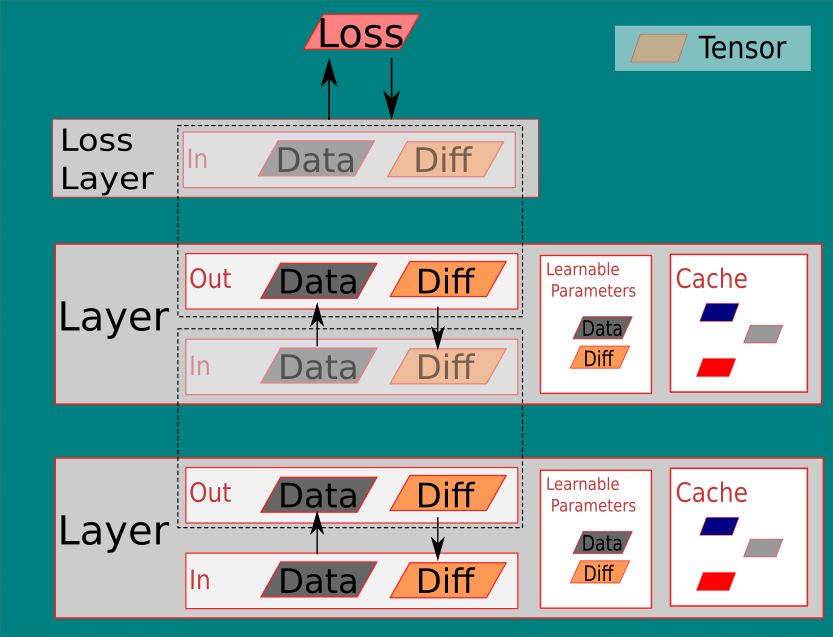

There are three several types of memory used, as shown in the figure:

_images/net-memory.png
  • layer learnable params(data and diff)
  • layer output(data and diff)
  • layer input(data and diff)
  • layer cache(data only)

They are all attached in the model_t:

struct A{
SomeType Data;

struct list_head list_all_params[1]; // list of all learnable params
struct list_head list_layer_out[1]; // list of output of each layer
struct list_head list_layer_in[1]; // list of input of each layer
struct list_head list_layer_cache[1]; // list of layer cache.
}

Note

Use with caution, don’t pass A by value, since all list data structure rely on list_head *head, to determine the end of the list.

The struct list_head is a list structure derived from linux kernel list.h. To use it we need to first call init_list_head(head), then for each nodes, init_list_head is also used to init, then the node can be added to the list by list_add or list_add_tail

Allocation

Currently the net knows about the maximum batch size, so all the sizes of memory types above can be inferred.

  • In the mlp_init function, all the output, learnable params are directly allocated and added to the net using net_attach_param.
  • input can be special, since the input of upper layer is the output of the bottom layer, we still use the list structure above to track all the data/diff of input, but they are just shadow copy of lower output.
  • cache Currently, each layer can different types of caches. For the simplicity, lcache_t is just a place holder to track caches used by each layer. inside each lcache_t, tensors can be pushed in and popped out

Access

After net_attach_param, each param can be accessed by

tensor_t w = net_get_param(model->list_all_params, "fc1.weight")->data
tensor_t dw = net_get_param(model->list_all_params, "fc1.weight")->diff

Destroy

Only problem currently is destroy input. Currently the shadow copy from the output is simply a copy of tensor_t, which means free from one side needs to explicitly synced to the other side.

For now, I just free output tensors, i will revisit it in future.
